Macro Pad

November 2020


I can’t quite remember how I got into mechanical keyboards… but they sure are pretty. I have to find ways to use my Electrical Engineering degree somehow, so I figured it’d be fun to make my own keyboard. I’m currently using a 60% keyboard and I was feeling the need for a numpad.

My design uses a ProMicro as the controller because I wanted the whole thing to be relatively easy to hand solder. The ProMicro is also compatible with QMK, an open source keyboard firmware.

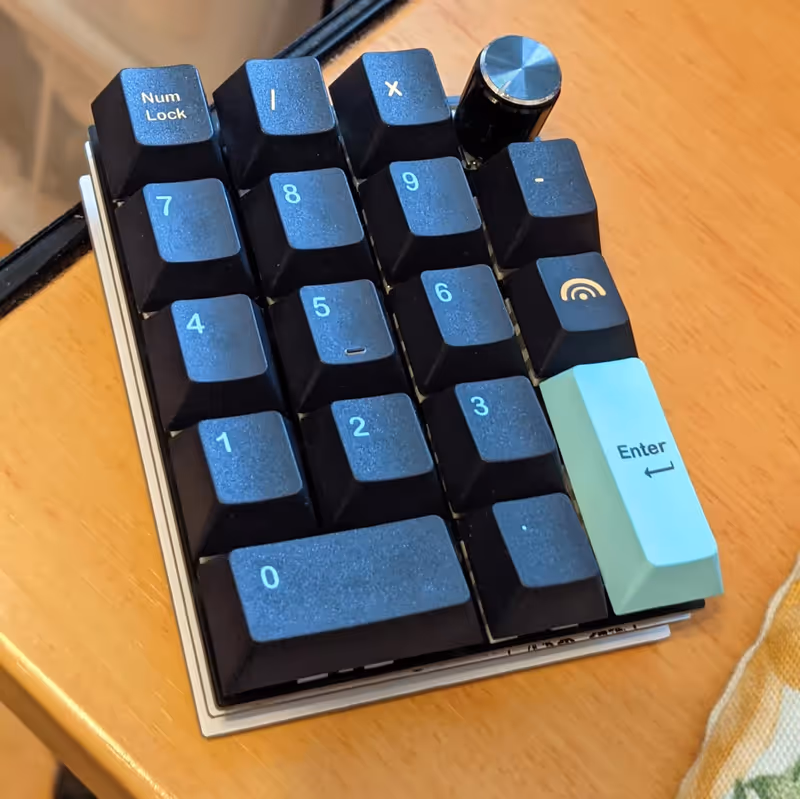

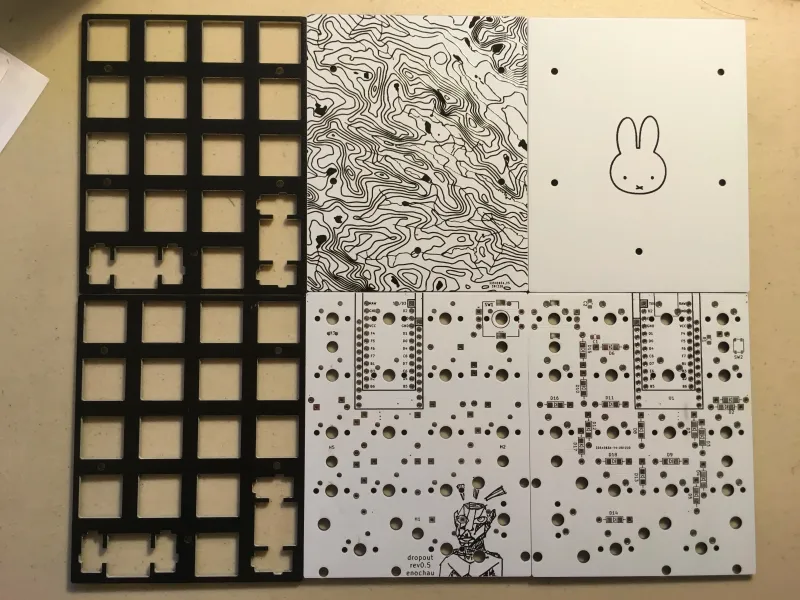

Rev 0.5

Rev 0.5

Rev 0.1

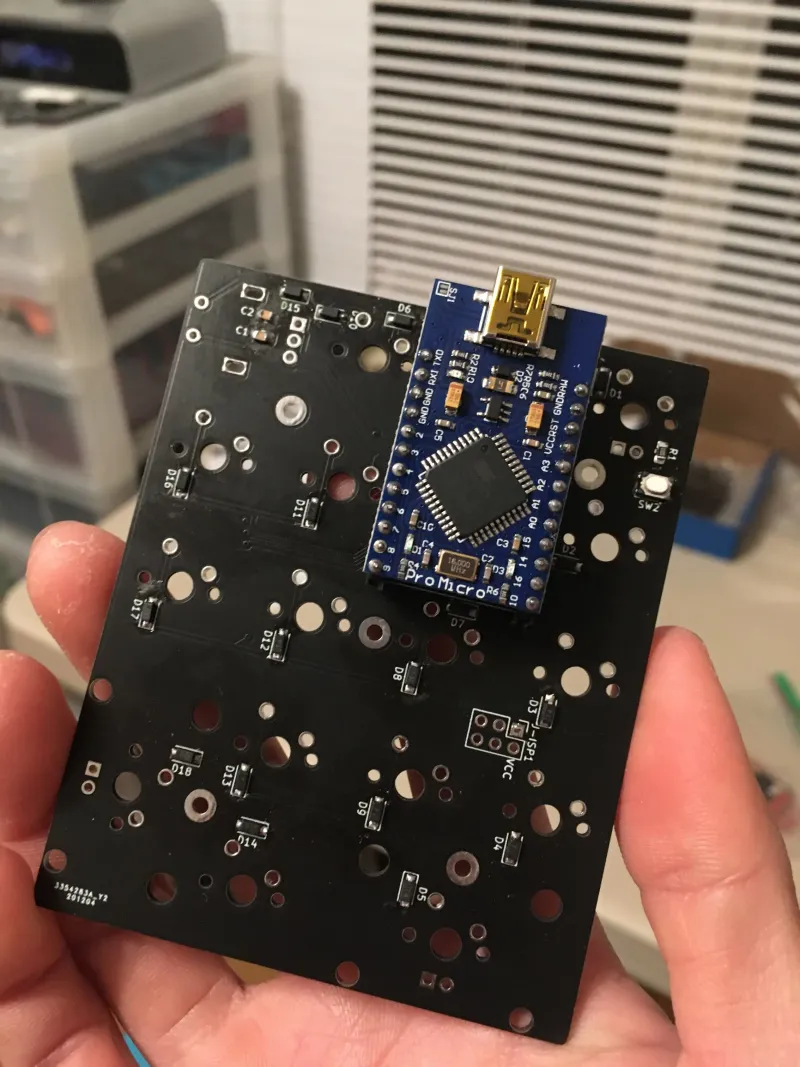

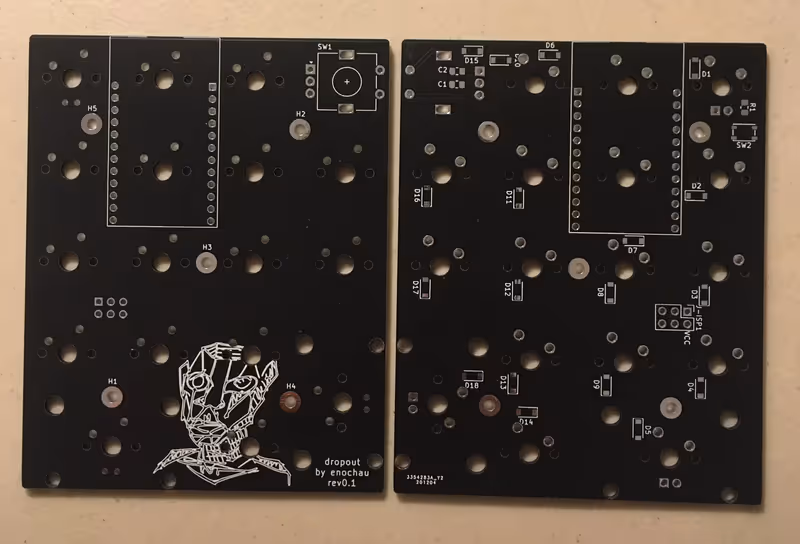

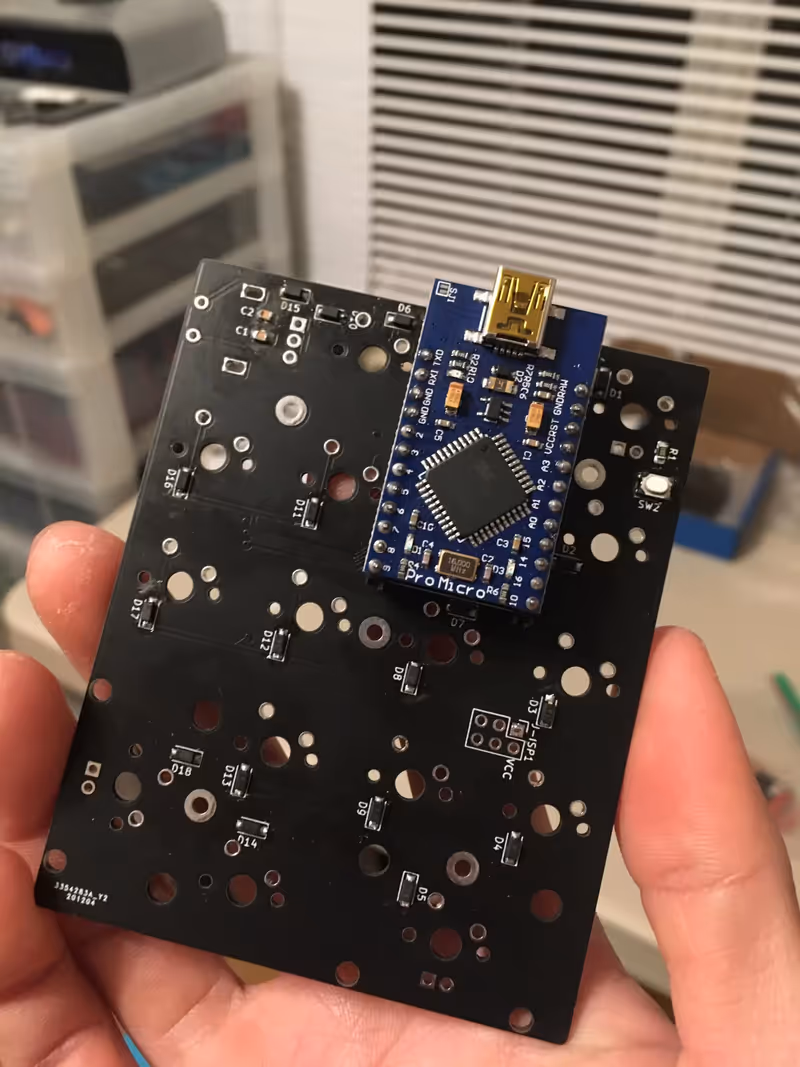

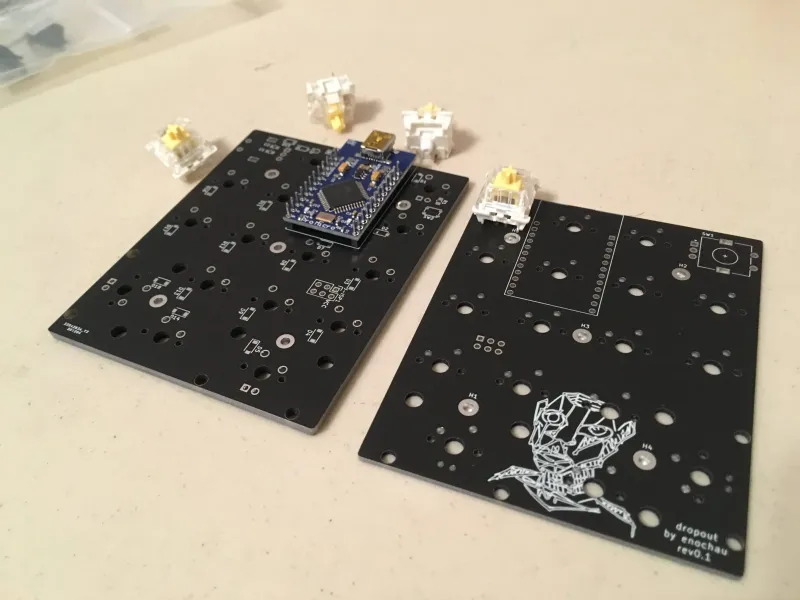

Rev 0.1 PCB w/ components Rev 0.1 Populated PCB Rev 0.1 PCB

Rev 0.0

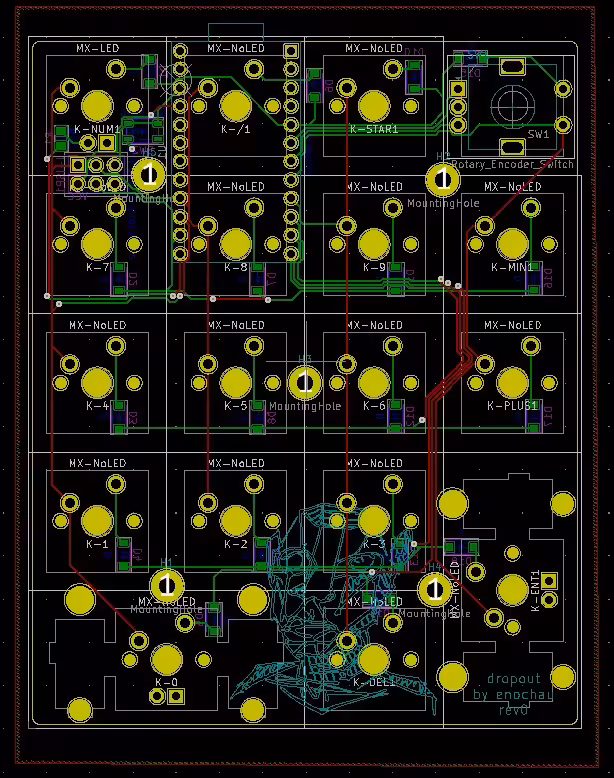

Rev 0 CAD design
